Solar Power

American Municipal Power, Inc. (AMP) continues its role as a regional leader in developing and deploying renewable generation*.

AMP Solar Phase II


In March 2016, AMP entered into a joint development agreement with DG AMP Solar, a wholly owned subsidiary of NextEra Energy Resources, for the development, construction and operation of up to 80 megawatts (MW) or more of new solar electric generation facilities. The two organizations executed a solar power purchase agreement (PPA).

Through the DG AMP Solar subsidiary, NextEra builds, owns and operates the solar sites and AMP purchases all output from the solar generation. AMP sells the output to 22 participating members using a take and pay contract.

The systems each consist of solar photovoltaic generating facilities utilizing polycrystalline photovoltaic modules and central inverters. The modules are mounted on either a fixed tilt or tracker racking system. Each system is interconnected to the electric distribution system of a host participant and is located at a site located on land within or near the geographic footprint of such host participant.

There are 16 systems with a rated capacity of approximately 58.325 MW located in Delaware, Michigan, Ohio and Virginia.  The systems have a rated capacity ranging from 0.25 MW to 20 MW.  The first of the systems, located in Bowling Green, entered commercial operation in January 2017 (see more on the Bowling Green Solar Facility below). A list of the systems and the performance of such relative to P90 are set forth below in the following tables:

Systems
Site Rated Capacity (in MW)  Commercial Operation Date
Bowling Green  20.000  1/24/2017
 Marshallville  0.700 3/3/2017
 Prospect  0.250  3/3/2017
Front Royal  2.500 5/8/2017
Orrville #2    0.950 1/26/2018
 Versailles  1.750  1/29/2018
Haskins  0.700  1/29/2018
 Coldwater  1.305 2/1/2018
 Jackson Center #2  1.620 2/8/2018
 Orrville #3  2.250 3/3/2018
 Smyrna  1.170  7/6/2018
 Piqua Staunton  1.755 9/1/2018
Brewster  1.875  1/1/2019
Piqua Manier  12.625  7/17/2019
Wadsworth Seville Rd.  6.250  3/1/2020
Wadsworth Rittman Rd.  2.625  6/1/2020
 Total 58.325







Performance of Systems
(Calendar Year 2023)
Site  Actual Production
(in MWh)
P90 Projection
(in MWh)

Variance (%) Capacity Factor (%) Availability Factor (%)
Bowling Green 39,642  38,122 4 22.6 100
 Marshallville 1,143 1,063  7.6 18.7 100
 Prospect 399 409 (2.4) 18.2 100
Front Royal 4,259 4,096 4 19.4 100
 Orrville #2 1,303 1,329 (2) 15.7 100
Versailles  2,683 2,539 5.7 17.5 100
Haskins  648 1,057 (38.7) 10.5 99
Coldwater  1,994 1,900 5 17.4 100
Jackson Center  2,790 2,657 5 19.7 100
 Orrville #3 3,299 3,196 3.2 16.7 100
 Smyrna 1,911 1,727 10.7 18.6 100
Piqua Staunton 2,610 2,805 (6.9) 17 100
Brewster 2,251 2,383 (5.5) 13.7  99
Piqua Manier 21,763 21,480 1.3 19.7 100
Wadsworth Seville Rd 11,257 10,891 3.4 20.5 100
Wadsworth Rittman Rd 3,610 3,687 (2.1) 15.7  100
Total/Average 101,564 99,338 2.2 20  >95

Includes data commencing with each system's first full month of operation for systems entering commercial operation in 2023 and is through December 2023.



Historical Performance of Systems

Calendar Year 2022
Site  Actual Production
(in MWh)
P90 Projection
(in MWh)

Variance (%) Capacity Factor (%) Availability Factor (%)
Bowling Green 40,816   38,506 6 23.3 100
 Marshallville 1,076 1,073  0.3 17.5 100
 Prospect 363 413 (12.2) 16.5 100
Front Royal 4,378 4,138 5.8 20 100
 Orrville #2 1,311 1,342 (2.3) 15.7 100
Versailles  2,771 2,565 8 18.1 100
Haskins  692 1,067 (35.1) 11.3 100
Coldwater  1,986 1,919 3.5 17.3 100
Jackson Center  2,886 2,683 7.6 20.3 100
 Orrville #3 3,273 3,228 1.4 16.6 99
 Smyrna 1,986 1,744 13.8 19.4 100
Piqua Staunton 2,720 2,833 (4) 17.7 100
Brewster 2,337 2,407 2.9 14.2  100
Piqua Manier 22,451 21,696 3.5 20.30  99
Wadsworth Seville Rd 11,012 11,001 0.1 20.1 100
Wadsworth Rittman Rd 3,371 3,724 (9.5) 14.6  100
Total/Average 103,430  100,339 3.1 17.7  >95

Includes data commencing with each system's first full month of operation for systems entering commercial operation in 2022 and is through December 2022.

Calendar Year 2021
Site  Actual Production
(in MWh)
P90 Projection
(in MWh)

Variance (%) Capacity Factor (%) Availability Factor (%)
Bowling Green 40,324   38,313 5 23 99
 Marshallville 1,079 1,068  1 18 100
 Prospect 363 411 (12) 16 100
Front Royal 4,375 4,117 6 20 100
 Orrville #2 1,314 1,335 (2) 16 100
Versailles  2,821 2,552 11 18 100
Haskins  1,026 1,062 (3) 17 100
Coldwater  2,061 1,909 8 18 100
Jackson Center  2,888 2,670 8 20 100
 Orrville #3 3,306 3,212 3 17 100
 Smyrna 1,956 1,753 13 19 100
Piqua Staunton 2,741 2,819 (3) 18 100
Brewster 2,415 2,395 1 15  100
Piqua Manier 22,363 21,588 5 20  100
Wadsworth Seville Rd 10,027 10,946 (8) 18 99
Wadsworth Rittman Rd 3,669 3,706 (1) 16  100
Total/Average 103,002  99,838 3 18  >95

Includes data commencing with each system's first full month of operation for systems entering commercial operation in 2021 and is through December 2021.





Calendar Year 2020
Site  Actual Production
(in MWh)
P90 Projection
(in MWh)

Variance (%) Capacity Factor (%) Availability Factor (%)
Bowling Green 39,137  38,699 1.1 22.3 99
 Marshallville 1,079 1,079  0 17.6 100
 Prospect 430 415 3.6 19.6 100
Front Royal 4,492 4,159 8 20.5 100
 Orrville #2 1,332 1,349 (1.3) 16 100
Versailles  2,779 2,578 7.8 18.1 100
Haskins  1,126 1,073 5 18.3 100
Coldwater  2,090 1,928 8.4 18.2 100
Jackson Center  2,799 2,697 3.8 19.7 100
 Orrville #3 3,280 3,244 1.1 16.6 100
 Smyrna 1,922 1,753 9.7 18.7 100
Piqua Staunton 2,808 2,847 (1.4) 18.2 100
Brewster 2,480 2,419 2.5 15.1  100
Piqua Manier 21,657 21,805 (0.7) 19.5  100
Wadsworth Seville Rd 8,688 10,032 (13.4) 18.9 93
Wadsworth Rittman Rd 2,439 2,265 7.7 18.1  100
Total/Average 98,538  98,342 0 18  >95

Includes data commencing with each system's first full month of operation for systems entering commercial operation in 2020 and is through December 2020.




Calendar Year 2019
Site  Actual Production
(in MWh)
P90 Projection
(in MWh)

Variance (%) Capacity Factor (%) Availability Factor (%)
Bowling Green 37,409  38,894 (4.0)  21 100
 Marshallville 1,029 1,084  (5.0) 17 100
 Prospect 419 417  1.0  19 100
Front Royal 4,693 4,179  12.0 21 100
 Orrville #2 1,371 1,356  1.0  16 100
Versailles  2,759 2,591   7.0 18 100
Haskins  1,079  1,078   0 18  100
Coldwater  1,932  1,938  0 17 99
Jackson Center   2,749 2,710  1.0 19  100
 Orrville #3 3,343 3,260   3.0  17 100
 Smyrna  2,021 1,762  15.0  20 100
Piqua Staunton 2,836  2,861 (1.0)   18  100
Brewster  2,578 2,338 10.0  17  100
Piqua Manier 8,057  7,984 1.0  17  100
Total/Average 72,275  72,453 (0.25) 18  95

Includes data commencing with each system's first full month of operation for systems entering commercial operation in 2019 and is through December 2019.







Calendar Year 2018
Site  Actual Production
(in MWh)
P90 Projection
(in MWh)

Variance (%) Capacity Factor (%) Availability Factor (%)
Bowling Green 33,172  33,254 0.0  25 95
 Marshallville 898 910  (1.0) 19 100
 Prospect 335 344  (3.0)  20  100
Front Royal 3,422 3,387  1.0 21 100
 Orrville #2 1,060  1,076  (2.0)   19 100
Versailles  2,211  2,019   10.0 22  100
Haskins  866  849   2.0 21   100
Coldwater  1,523  1,567   (3.0) 20  91
Jackson Center   2,022 1,951   4.0 23  100
 Orrville #3  2,109 2,123   (1.0)  21 100
 Smyrna  337 340  (1.0)   20 100
Piqua   218  272 (20.0)   23  100
Total/Average 48,173  48,092  0.2 21  99

Includes data commencing with each system's first full month of operation for systems entering commercial operation in 2018 and is through September 2018.




Calendar Year 2017
Site  Actual Production
(in MWh)
P90 Projection
(in MWh)

Variance (%) Capacity Factor (%) Availability Factor (%)
Bowling Green 37,678  37,729   (0.1)  28 100
 Marshallville 938  896  4.7  24 100
 Prospect 333  343  (2.7)  25  100
Front Royal 2,660  2,490   6.8 25 100
Total  41,609  41,457  0.4 25  100

Includes data commencing with each system's first full month of operation.






The development of solar facilities further diversifies AMP’s member power supply portfolio, which includes natural gas, advanced coal, hydro, wind and landfill gas, as well as wholesale market purchases.

* Note that AMP, on behalf of its members, sells all or a portion of the renewable energy certificates created by its renewable energy projects, power purchase agreements and joint ventures to help reduce its wholesale power costs.

Bowling Green Solar Facility

Solar_Phase_II-BG-2016

The Bowling Green Solar Facility, one of the largest solar installations in the state of Ohio, is a 20 MW installation located in Bowling Green and is part of Solar Phase II.

NextEra Energy and their EPC contractor, Blattner Energy, began construction in July 2016 and achieved mechanical completion in December 2016. The site achieved commercial operation in January 2017.

The Bowling Green Solar Facility consists of 85,680 modules, 20-1 MW inverters, 10-34.5 kV transformers and spans 165.09 acres. The site also utilizes a tracker system that will help in maximizing production. A substation was also built on site that steps the voltage up from 34.5 kV to 69 kV.

Bowling Green Facts

2017 Facility went online 85,680 solar panels 165 acres

The site produced its first megawatt-hours of sunshine-driven power in January.

The total number of solar modules installed at the site.

The Bowling Green facility is one of the largest solar installations in Ohio.

2017 Facility went online

The site produced its first megawatt-hours of sunshine-driven power in January.

85,680 solar panels

The total number of solar modules installed at the site.

165 acres

The Bowling Green facility is one of the largest solar installations in Ohio.



AMP Solar Phase I: Napoleon Solar Facility

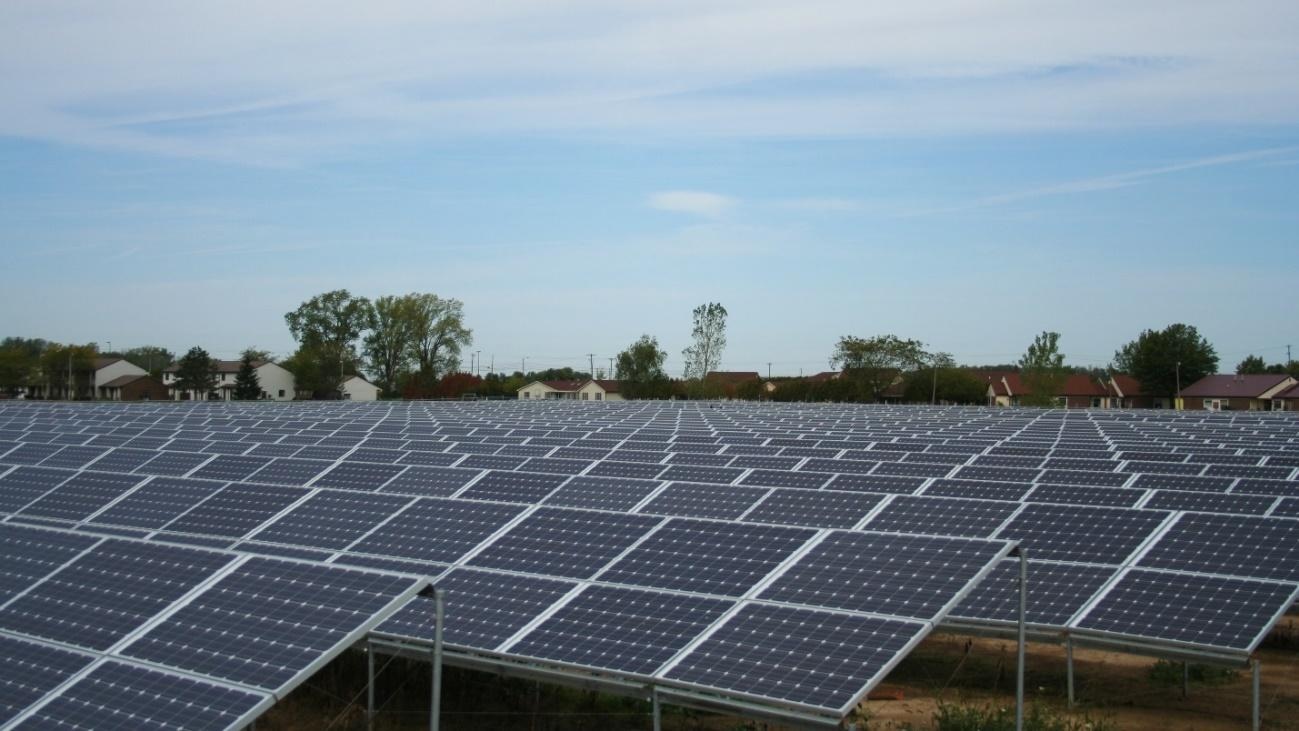

Napoleon_solar-field

Working in partnership with its member communities, AMP developed and owns the Napoleon Solar Facility, a 3.54 MW (AC) solar project located in Napoleon, Ohio. The facility is connected to the City of Napoleon’s electric system, providing transmission savings. The site produced its first megawatt-hours of sunshine-driven power in August 2012.


A ribbon-cutting ceremony was held September 21, 2012. Pictured from left are David Mustine, JobsOhio general manager; Elizabeth Bostdorff, district representative for Congressman Bob Latta (R-Bowling Green); State Rep. Lynn Wachtmann (R-Napoleon); State Sen. Cliff Hite (R-Findlay); Napoleon Mayor Ron Behm; Michael Peck, Isofoton North America chairman; Marc Gerken, AMP president/CEO; and Craig Butler, assistant policy director for the office of Gov. John Kasich.

Napoleon Facts

2012 Facility went online 3 project participants 20.74 acres

The site produced its first megawatt-hours of sunshine-driven power in August.

The AMP member communities of Napoleon, St. Marys and Waynesfield, Ohio participate in the project.

The Napoleon solar facility was built on top of a converted landfill site.

2012 Facility went online

The site produced its first megawatt-hours of sunshine-driven power in August.

3 project participants

The AMP member communities of Napoleon, St. Marys and Waynesfield, Ohio participate in the project.

20.74 acres

The Napoleon solar facility was built on top of a converted landfill site.
